ChartAid - Resolution Window

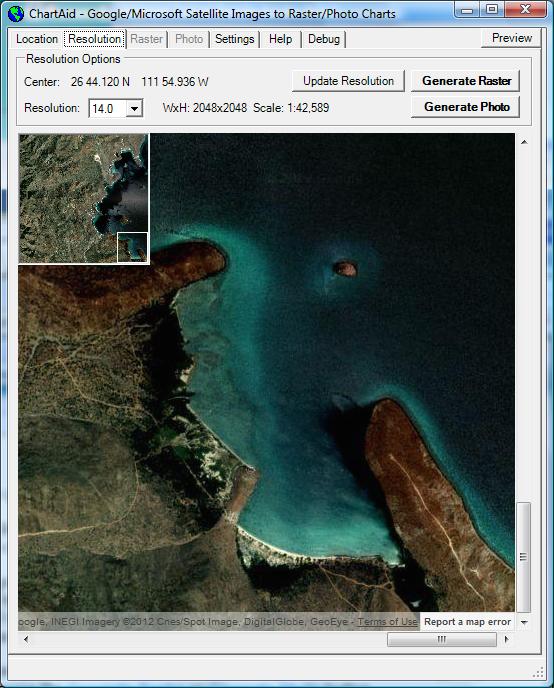

The picture on the left is a screen shot of step two.

To define the desired resolution of the image in feet per pixel, select from the choices in the pull-down, and then press the 'Update Resolution' button.

As you increase the resolution, the program increases the chart size in pixels, thereby displaying a sharper image.  In some cases the resulting image is larger than your screen.  An overview of the image and scroll bars are provided to aid in previewing the larger image.

When you are satisfied with the resolution press select the chart type by pressing the Generate Raster or Generate Photo button.
